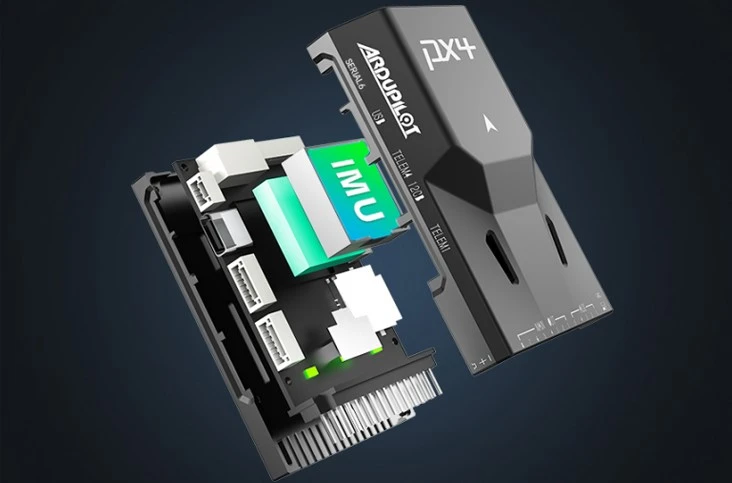

ZK-N7 tsis siv neeg davhlau tswj qhov nruab nrog H7 dual-precision floating-point processor, dual IMUs thiab dual magnetometers nrog redundant IMU kub tswj, ib qho kev poob siab sab hauv-absorbing qauv, thiab ua -nyob rau hauv cov cua kub resistors los xyuas kom meej lub davhlau maub los IMUs txawm nyob rau hauv ib puag ncig qis 7 kev ntseeg tau. ZK-N7 lub davhlau maub los kuj tau sib xws nrog Ardupilot thiab PX4 qhib- qhov chaw ecosystems, ua kom cov ntawv thov nplua nuj nthuav dav thiab muab cov txheej txheem ruaj khov thiab muaj txhij txhua- theem kev daws teeb meem rau drone, tsheb tsis muaj neeg tsav tsheb, nkoj, thiab cov neeg tsav tsheb ntse thiab cov neeg nrhiav kev lag luam.
ZK-N7 tsis siv neeg tswj lub davhlau tuaj yeem ua ke nrog RTK thiab PPK cov khoom lag luam kom ua tiav centimeter- qib kev tso npe, hloov mus rau qhov chaw sib nqus sib nqus, thiab txhawb nqa GPS kev taw qhia nrhiav, tshem tawm cov teeb meem tshwm sim los ntawm kev cuam tshuam ntawm magnetic compass. Nws yog dav siv hauv kev soj ntsuam thiab kev ua liaj ua teb.
ZK-N7 tsis siv neeg lub davhlau tswj qhov system tuaj yeem sib xws nrog cov nplua nuj ntawm kev sib txuas thiab kev sib txuas ua ke, nrog rau cov koob yees duab sib txawv thiab cov khoom siv electro-optical pods. Ua ke nrog siab -kev ua tau zoo firmware thiab software suav nrog PX4, ArduPilot, QGroundControl, thiab Lub Hom Phiaj Planner, nws txhawb nqa ntau yam ntawm cov ntawv thov scenarios, muab cov neeg tsim khoom nrog kev txhim kho ua tiav thiab cov txheej txheem muaj zog- theem kev daws teeb meem.
Khoom Parameters
| Zuag qhia tag nrho Performance | |
| Txhawb Cov Qauv |
Tsau -wing/3-8 rotor/Helicopter/VTOL/Unmanned Vehicle/Unmanned Surface Vehicle, thiab lwm yam. |
| Lub zog ua haujlwm Voltage | 4.5V ~5.5V |
| USB input voltage | 5 V (+0.25 V) |
| Servo input voltage | 0~10V |
| Sensors | |
| Accelerometer/Gyroscope | BMI 088/ICM 20689 |
| Barometer | TIAB SA 5611 |
| Electronic Compass | TSI 8310 |
| Hardware Specifications | |
| Main Processor | STM32H743IIK6 (32-ntsis Arm R Cortex-M7, 480MHz, 2MB nco, 1MB RAM) |
|
Co-processor |
STM32F103 (32-ntsis Arm Cortex-M3, 72MHz, 20KB SRAM) |

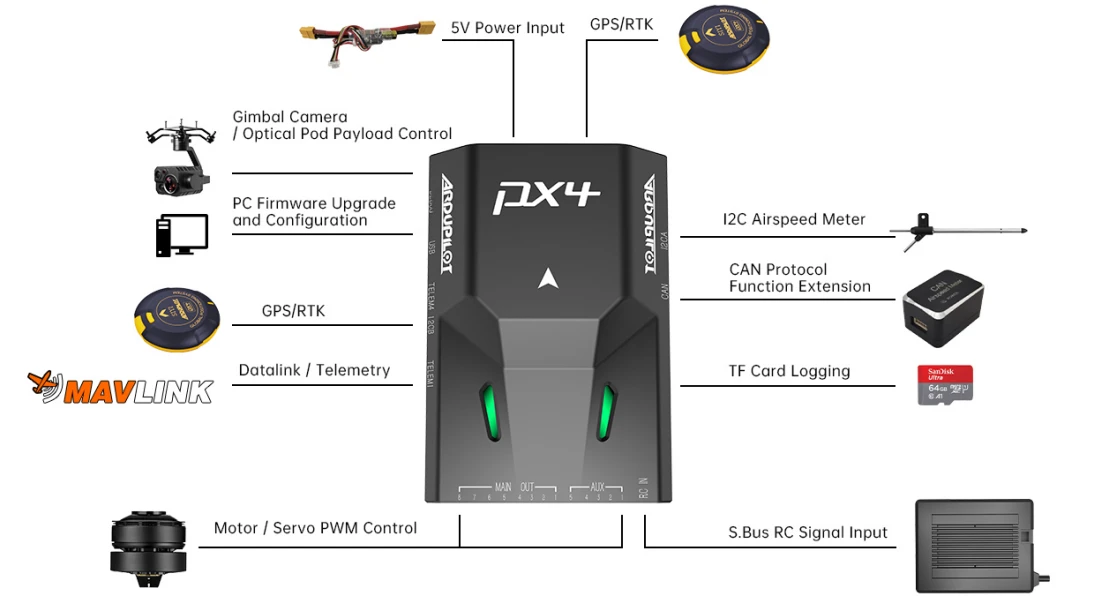

Daim duab qhia kev sib txuas
Lus Cim: Daim duab qhia tsuas yog qhia txog kev siv ib txwm, N7 lub davhlau tswj kev txhawb nqa ntau zog thiab nplua nuj daim ntawv thov nthuav dav, txais tos tuaj koom nrog peb los tshawb nrhiav ua ke!
Yam khoom twg xaiv?
n7 Flight Control Kit
Xaiv cov khoom siv uas haum rau koj zoo tshaj plaws.
N7 Autopilot Basic Combo
N7 Autopilot
Lub zog module
N7 Autopilot GPS Combo
N7 Autopilot
Lub zog module
Gps Module
Optional Autopilot Parts
01
Fais fab Module
02
M9N GPS Module
03
F9P RTK Module
04
MS5525 Airspeed Meter
Khoom Competitiveness
Sib piv Open Source Autopilots
| Qauv |
ZK-N7
|
Txiv kab ntxwv + Kub
|
CUAV Pixhawk V6X
|
Holybro Pixhawk 6C
|
| cov khoom |
 |
 |
 |
 |
|
Main Processor
|
STM32H743 IIK6
M7 DP-FPU
480 MHz
|
STM32H757
M7 DP-FPU
400 MHz
|
STM32H753
M7 DP-FPU
480 MHz
|
STM32H743
M7 DP-FPU
480 MHz
|
|
Co-processor
|
STM32F103
|
STM32F100
|
STM32F103
|
STM32F103
|
|
Qhov ntev
|
47 * 68 * 19 hli
57 g
-20 - 65 degree
|
31 * 44.3 * 94.5 hli
73 g
-10 - 55 degree
|
45.0 * 90.0 * 29.2 hli
99 g
-20 ~ 85 degree
|
84.8 * 44 * 12.4 hli
93 g
-20 ~ 85 degree
|
|
I2C
|
3 | 2 | / | 1 |
|
TF Card Qhov
|
1 | 1 | 1 | / |
|
raws tu qauv
|
PX4, Ardupilot
|
PX4, Ardupilot, Hionos
TSI-178C
|
PX4, Ardupilot | PX4, Ardupilot |
|
Hom qauv
|
Tsau -Wing
VTOL,
Multi-rotor
UGV,
Helicopter
USV
|
Tsau -Wing
VTOL,
Multi-rotor
UGV,
Helicopter
USV
|
Tsau -Wing
VTOL,
Multi-rotor
UGV,
Helicopter
USV
|
Tsau -Wing
VTOL,
Multi-rotor
UGV,
Helicopter
USV
|
